Temperature Scanners
High-precision multi-point temperature acquisition for test cell, aerospace, industrial, and energy applications. Available through K-Tec Systems with U.S.-based engineering support.
Request a QuoteMulti-Point Temperature Measurement Engineered for Demanding Environments
Chell Instruments has designed and manufactured precision measurement instrumentation for nearly 50 years. Their temperature scanners share the same proven architecture and communication interfaces as Chell’s pressure scanner product line, enabling synchronized acquisition across mixed measurement types in a single test setup.
K-Tec Systems is Chell’s authorized U.S. distributor. All Chell temperature scanners are available with domestic sales support, application engineering, and coordination with K-Tec’s own thermocouple and sensor manufacturing capabilities.
Chell Temperature Scanner Range
Three products covering thermocouple scanning, multi-type acquisition, and intelligent plug-and-play connectivity. All use Chell’s common DAQ architecture for seamless integration with Chell pressure scanners.

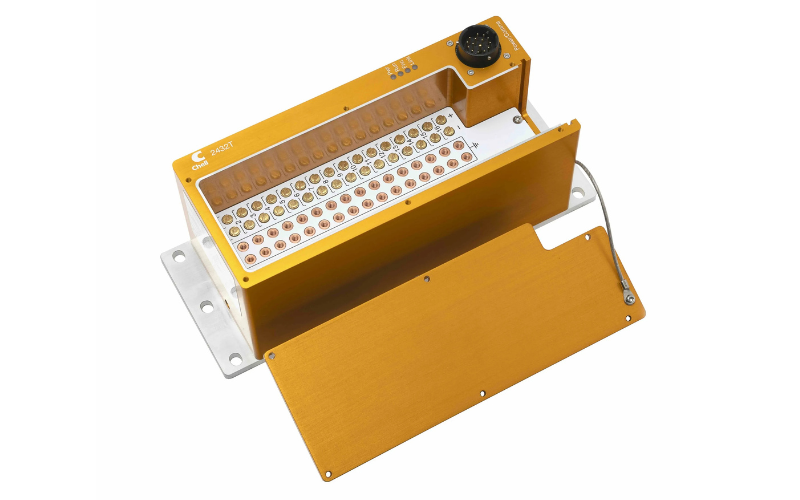

2432T Temperature Scanner
32-channel thermocouple acquisition system with synchronous 24-bit ADC per channel, 1000V channel-to-channel isolation, and advanced open-circuit detection. Pairs directly with Chell’s pressure scanner product line.
- Channels32 thermocouples
- Resolution24-bit per channel
- Sample rate250 Hz per channel
- Isolation1000V channel-to-channel
- InterfaceGbit Ethernet
- PowerPoE or DC

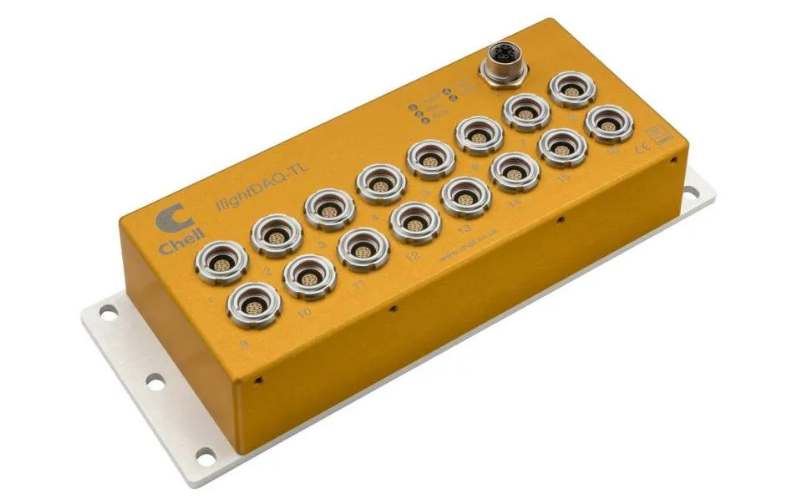

flightDAQ-TL
16-channel configurable acquisition system for PRTs, thermocouples, RTDs, and external pressure transducers. Each channel is independently configurable without compromising speed or data integrity.
- Channels16 configurable inputs
- Input typesTC, RTD, voltage, resistance
- Resolution24-bit
- Excitation5V, 10V, 24V configurable
- Sample rate250 Hz per channel
- Smart ConnectorCompatible

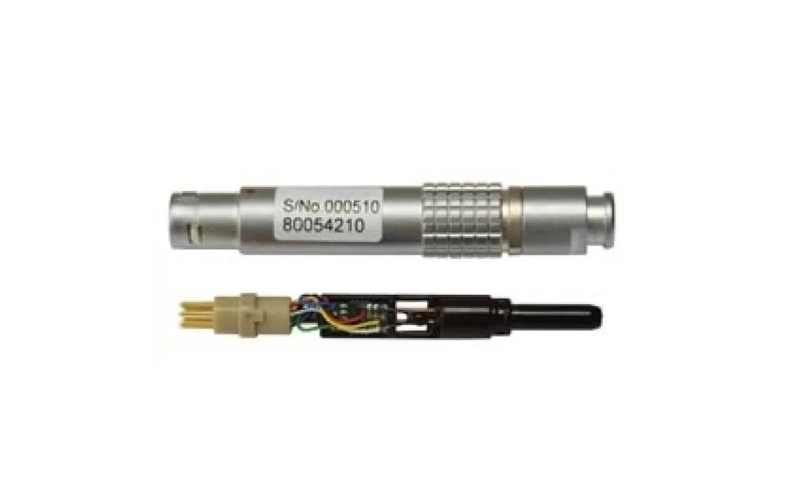

Smart Connector
Intelligent transducer connector with on-board EEPROM memory storing sensor identification, calibration data, and engineering unit lookup tables. Turns the flightDAQ-TL into a fully plug-and-play acquisition system.
- CompatibilityflightDAQ-TL, 2422
- VersionsTC, RTD, pressure, voltage
- Memory64K EEPROM on-board
- Cal storageUp to 448-point LUT
- EnvironmentVibration & alt. tested
- OperationPlug-and-play
Request a Quote or Technical Consultation
K-Tec Systems provides U.S. sales, application support, and order coordination for the full Chell Instruments temperature scanner line. Contact us to discuss your measurement requirements.
